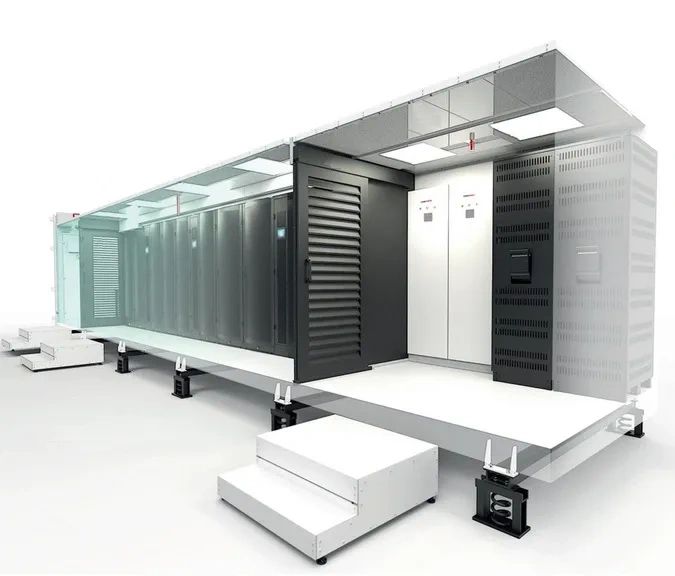

Product: Axcelia Smart Enclosure — modular, ISO‑compliant data‑center enclosure with integrated AI control, security, and remote operations.
Form Factor: 20‑ft ISO 668‑compliant container; CSC‑certified frame.
Designed Power Distribution: 2 MW rated distribution; 480 V / 2400 A bus capacity.
Controller / Compute: Axcelia AI Controller (rack‑mounted, industrial grade) with Intel® Xeon® 6952P, 96 cores.
AI & Automation: AI‑driven orchestration, workload scheduling, energy & thermal optimization, predictive analytics for equipment health and cooling efficiency.
Fault Handling: Automated fault detection with alert response < 2 s.
Cooling: Supports liquid, air, and cluster cooling; 10 kW PLC‑controlled chiller with N+1 redundancy (capacity tunable to site topology); target water temps 18 °C / 24 °C (inlet/outlet).
Thermal Control: Sensor‑feedback AI thermal optimization; high‑insulation panels.
Operating Range: Ambient –20 °C to +50 °C.

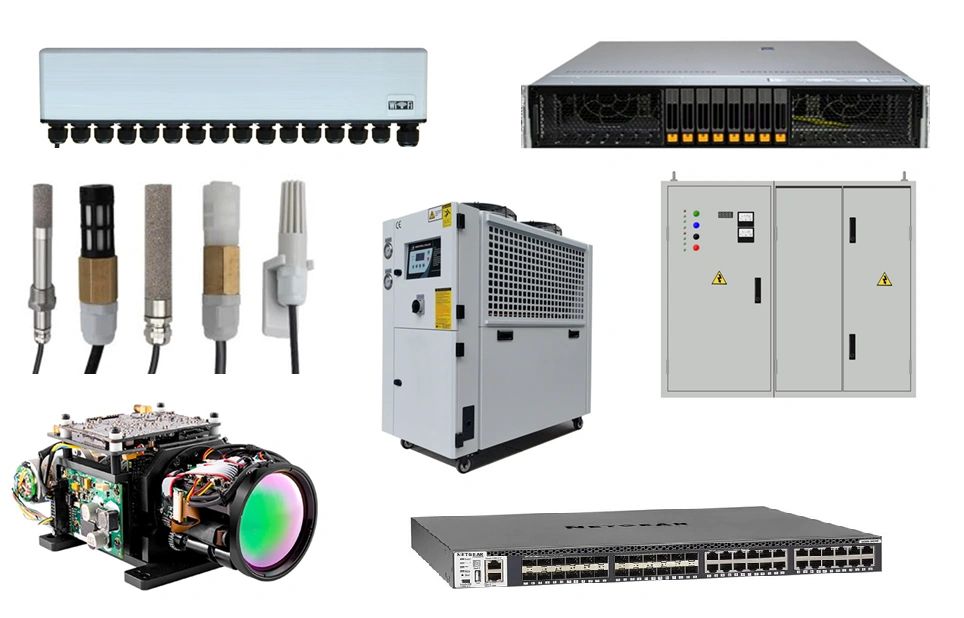

Environmental & Sensors: Multi‑sensor hub (up to 32 inputs) for temperature, humidity, air quality/gas/PM, vibration, noise, light; thermal IR imaging for hotspot detection; MEMS vibration monitoring; subsystem ingress ratings IP65/IP67.
Fire Safety: Early‑stage fire detection; specialized fire suppression systems.
Cybersecurity: Built‑in firewall; IDS/IPS; AI anomaly detection for network/data access; end‑to‑end encryption (in‑transit & at‑rest); zero‑trust model with multi‑layer authentication.
Physical Security: Facial recognition on access doors; authorized personnel lists in AI platform (real‑time updates); MFA (badge, biometric facial/iris, PIN); tamper/vibration sensors; automatic lockdown on unauthorized attempts.
Remote Monitoring & Control: Axcelia Remote Command Console via secure VPN; real‑time dashboards (temperature, humidity, CO₂, vibration, noise); remote control of chiller, power distribution, and AI workload orchestration.
Integrations & Protocols: Cloud‑integrated management; MQTT, Modbus TCP/IP, OPC‑UA; PLC control.
Reporting & Maintenance: Automated weekly reports; on‑demand system health audits; AI‑assisted predictive maintenance (cooling, PSUs, sensors).
Power Quality & Protection: Redundant 1200 W Titanium‑level (96%) PSUs (controller/aux systems); surge, ground‑fault, and overcurrent protection.
Monitoring & Metering: SCADA‑ready monitoring and energy metering.
Structure & Materials: Corten steel frame with PVDF insulated panels; ISO 668 20‑ft frame; CSC plate; designed for high durability and fire resistance.
Capacity & Mass: Internal volume ~33.2 m³; payload ~21,900 kg.
Modularity & Deployment: Modular design enables rapid deployment and relocation.
Interfaces & I/O: Sensor I/O via analog/digital/RS485; DIN‑rail modular connections; secure network access via VPN.
Applications: Edge data centers; Government & Defense; Financial & Healthcare (regulated workloads); Remote/Harsh sites (mining, energy, military).
Benefits: Secure‑by‑design cyber‑physical controls; full remote operability; energy‑efficient thermal/power systems; autonomous & smart with AI analytics/orchestration/predictive maintenance; standards‑aligned engineering.
Compliance (Target): Structural: ISO 668, CSC; Electrical/Safety: designed to meet IEC/UL/NEC (final certification per build/jurisdiction).
